Name: Air collector OS20 Solar air Heater heating air Conditioner Conditioning Exhaust Fan Ventilator Thermal Panel Dehumidifier Heat Pump Ventilation Dehumidificatio
Brand: Nakoair solar air heater
SKU: solar-air-collector-os20
Availability: InStock

🎉 Up to 70% Off Selected ItemsShop Sale

Your Cart (0)

Home Store

Air collector OS20 Solar air Heater heating air Conditioner Conditioning Exhaust Fan Ventilator Thermal Panel Dehumidifier Heat Pump Ventilation Dehumidificatio

1 / 17

+12

Air collector OS20 Solar air Heater heating air Conditioner Conditioning Exhaust Fan Ventilator Thermal Panel Dehumidifier Heat Pump Ventilation Dehumidificatio

Nakoair Solar air heater No cost for heating Ventilation Dehumidification Humidification Healthy indoor climate. Avoid moisture, mold, fungus, formaldehyde (HCHO), TVOC, benzene, ammonia, odor. Nakoair solar collectors provide you with a healthy and warm home and automatically processes indoor air. When it's a sunny day, OS20/30 will heat outdoor fresh air all the time. Runs completely independent of the grid.

Applications: Holiday Homes; Residential; Commercial Buildings; Cellar; Lofts; Garages; Workshop; Granges; Cabins; Summer Houses; Storage Rooms; Chalets; Sheds; Cottages; Caravans; Tents; Greenhouses; Drying Rooms; Gyms; Shops; Houses without electricity. Nakoair heater is started according to solar radiation.
Approximate room area for OS20: 30㎡; Maximum air flow: 88m³/h. Estimated energy supplement 525kwh/unit/year. Temperature rise: approx.10°C. Get your money back in 2-3 years. Mechanical thermostat: Ventilator will stop working when the heated temperature reaches the set value (eg. 25℃ ). The price already includes value-added tax (VAT) and customs duties. Free delivery to door.
On a sunny day, the temperature of the injected air is approximately 5-30ºC higher than the outdoor or indoor air inlet temperature. In addition, the air temperature on the sunny side usually rises more than 10 °C under the big sun.
In spring and autumn, the sun will be much better. The effect will be much better. In addition, the outdoor temperature at noon rose by several degrees Celsius. Solar products are environmentally friendly products, which are very useful for reducing greenhouse gas emissions. Reducing the air volume can increase the temperature, and increasing the air volume can increase the heating efficiency and dehumidification effect.

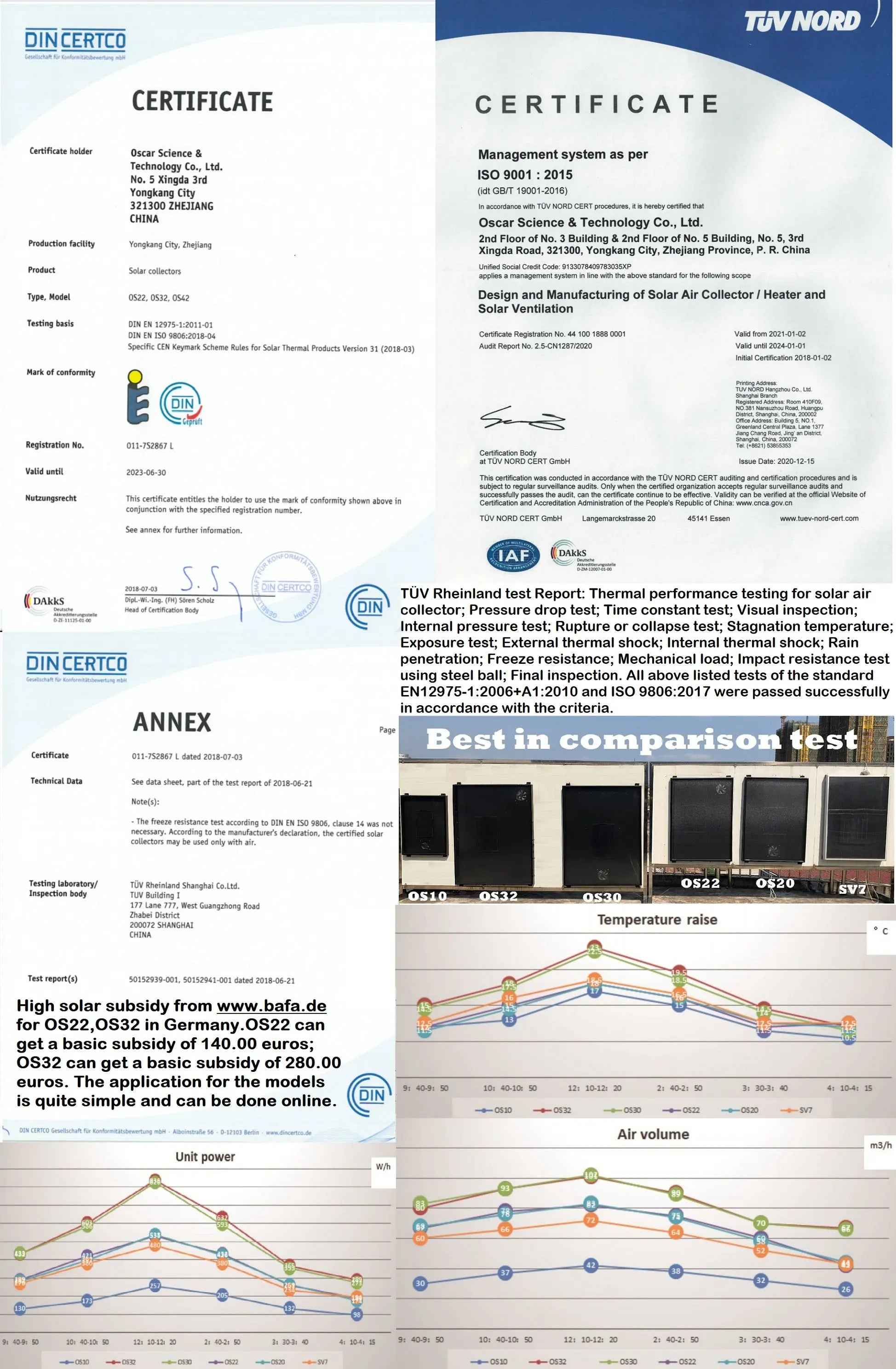

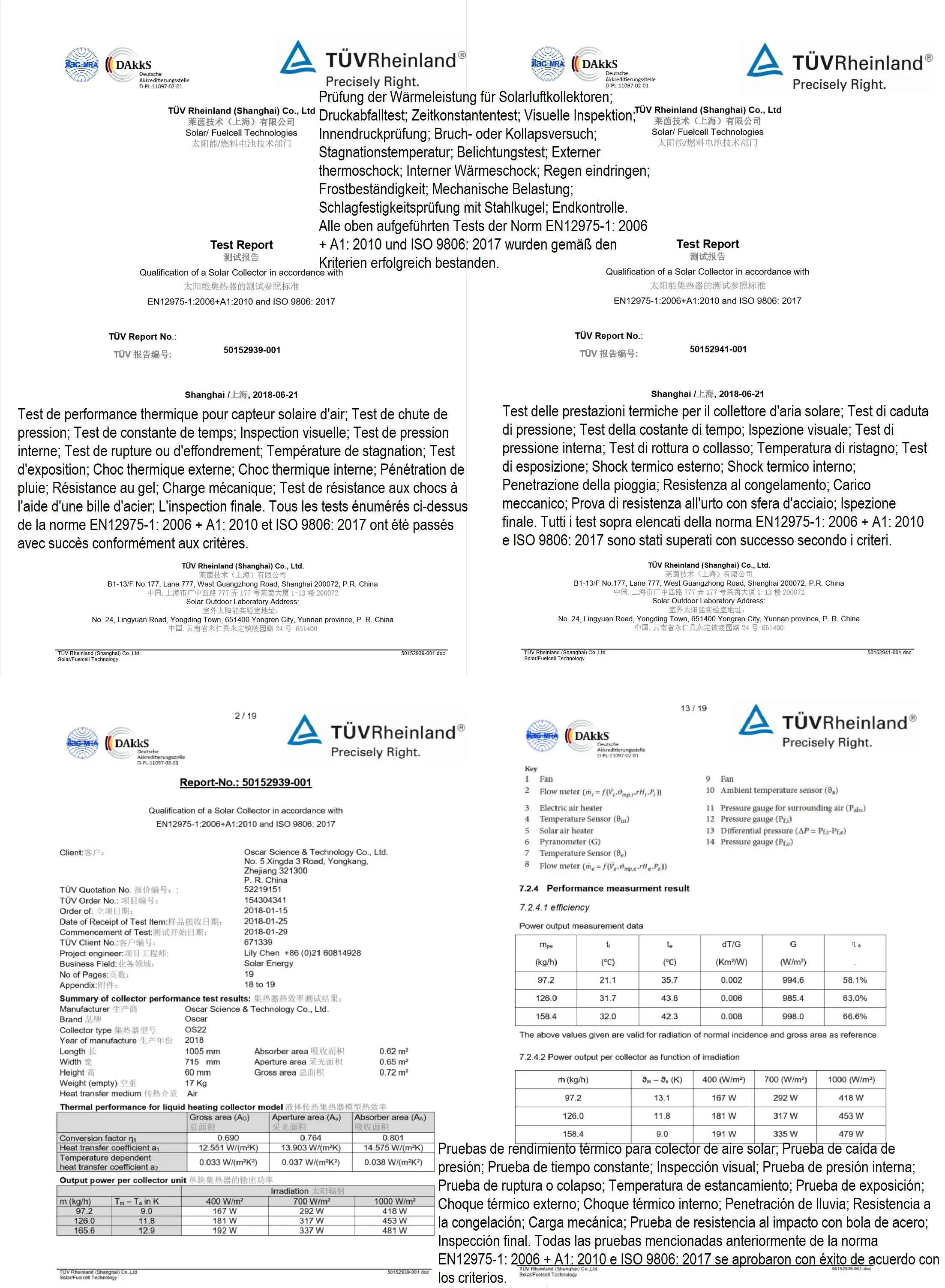

Through strict international certification, the products are trustworthy. The European Solar Keymark certification is the main quality label for solar thermal energy, demonstrating to end users that the product meets relevant European standards and meets other requirements. It is widely distributed in Europe and other regions.

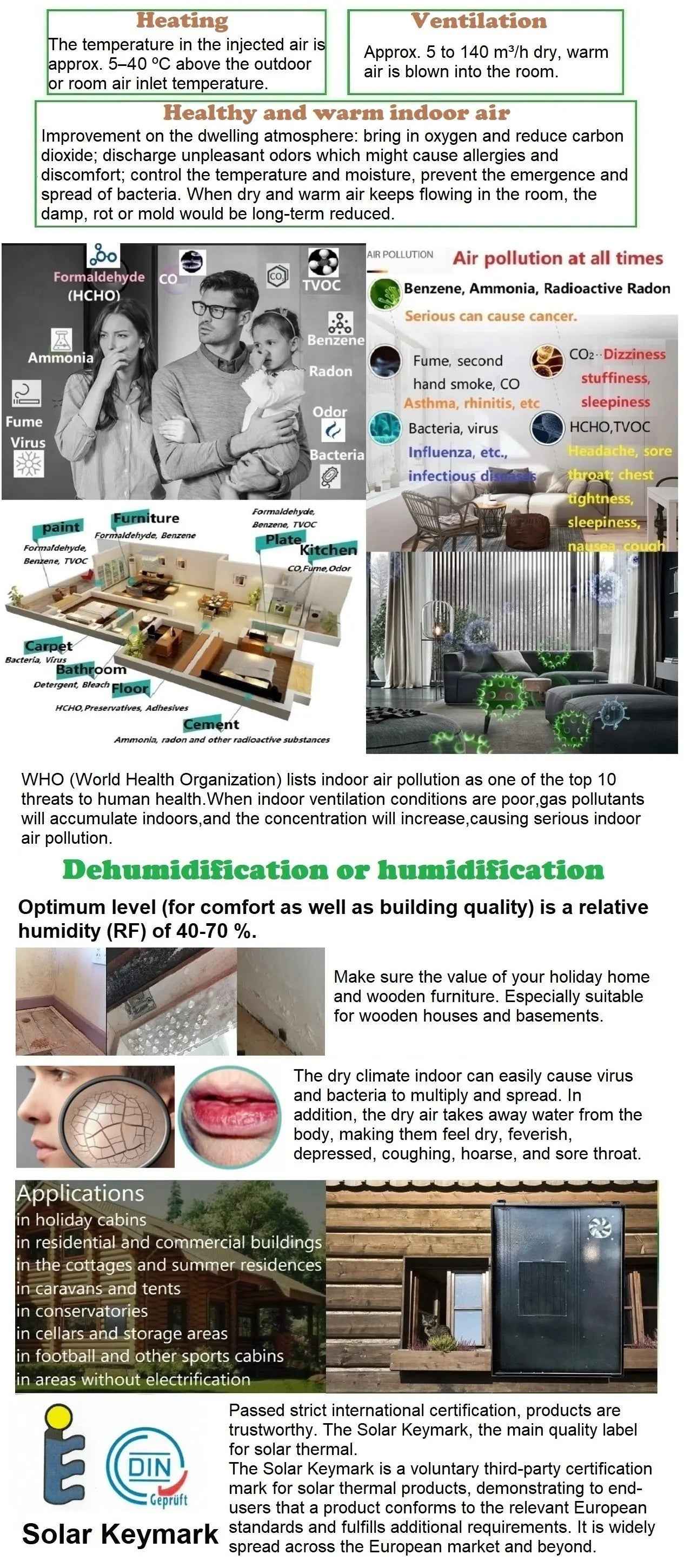

Heating

On a sunny day, the temperature of the injected air is approximately 5-30ºC higher than the air inlet temperature. In addition, the air temperature on the sunny side usually rises more than 10 °C under the big sun.

Ventilation

Depending on the model, approx. 5 to 140 m³ dry, warm air is blown into the room per hour. The room can also be slightly ventilated on a cloudy day without sunlight. The fresh air of solar air heater squeezes the turbid air out of the room, keeping the air fresh and oxygen-rich. Avoid moisture, mold, fungus, formaldehyde (HCHO), TVOC, benzene and odor. The room air can be exchanged within 2 hours.

Always supplying you a clean and healthy family

Improve the indoor environment, reduce the irritation caused by allergy, especially for newborns. Improvement on the dwelling atmosphere---- bring in oxygen and reduce carbon dioxide; discharge unpleasant odors which might cause allergies and discomfort; control the temperature and moisture of the room, prevent the emergence and spread of bacteria. When dry and warm air keeps flowing in the room, the damp, rot or mold would be long-term reduced.

Dehumidification and Humidification: Optimum level (for comfort as well as building quality) is a relative humidity (RF) of 40-70%.

Absorb room moisture and drain out the room. Ventilation + Heating = Dehumidification. Make sure the value of your holiday home and wooden furniture. Especially suitable for wooden houses and basements. Nakoair solar air heater in basement, can sufficiently solve the moisture in basement, and prolong the life span of indoor structure and electrical appliance. The problem: Humid basements. One of the first signs of humidity in the basement is the stale smell. The humidity will soon destroy items stored in the basement, such as textiles, cardboard boxes or furniture. In addition, the lack of regular ventilation will result in mould and harmful fungus. To make the rooms fit for use again they have to be heated, mechanically dehumidified and vented on a regular basis. Below 15 ºC, electric dehumidifier will frost, and dehumidification effect will be much worse. Moreover, dehumidifier needs refrigeration and consumes a lot of electricity. This usually results in high operating costs.

The dry climate indoor can easily cause virus and bacteria to multiply and spread. In addition, the dry air takes away water from the body, making them feel dry, feverish, depressed, coughing, hoarse, and sore throat.

Reduce the amount of air pollution and greenhouse gases that result from the use of fossil fuels for heating.
Safety: low voltage, no fire, no household electricity, no smoke or dust.

High solar subsidy from BAFA for OS22, OS32, OS42 in Germany. The application for the models is quite simple and can be done online. Important: The application and receipt of the corresponding confirmation of receipt must be made before the purchase.

Ventilation, heating, dehumidification or humidification, a healthy indoor climate!

Brand introduction: Nakoair solar collectors provide you with a healthy and warm home and automatically processes indoor air. Dedicated to sustainable development and innovations.

When it's a sunny day, OS20/30 will heat outdoor fresh air all the time. Total annual heating delivered (9 months) of OS20 is about 525 kwh; OS30 is about 780 kwh.

Function introduction

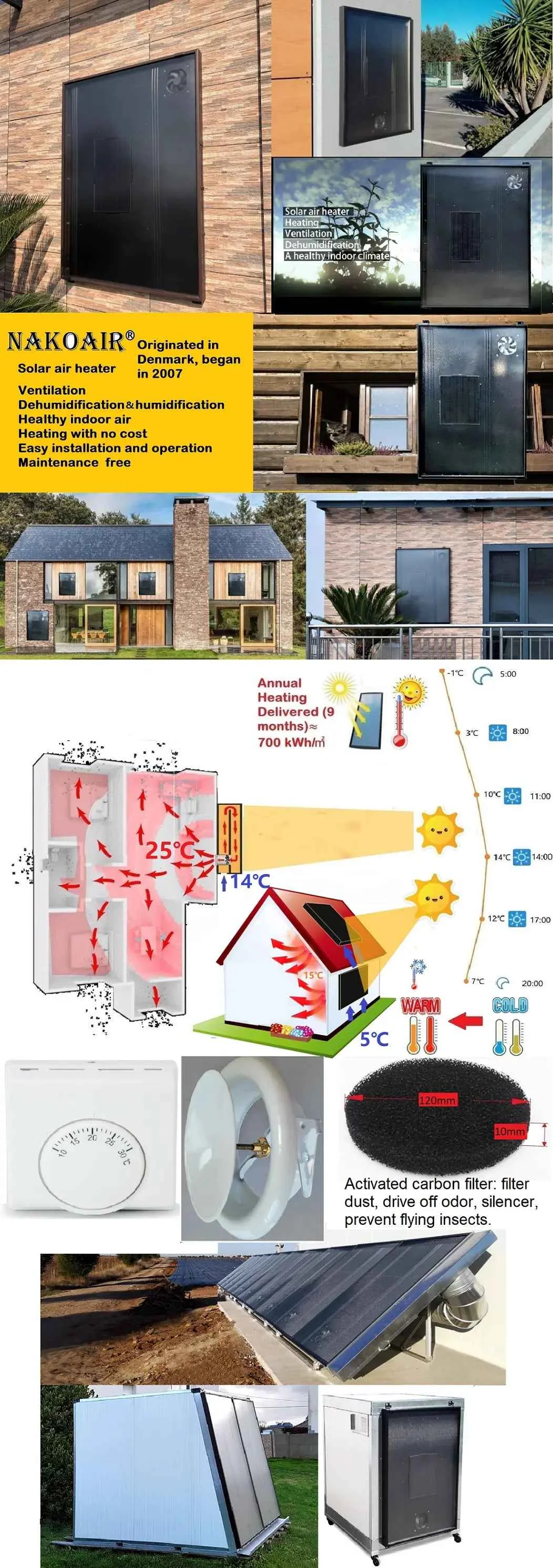

Operation principle for OS10/20/30 The heated fresh air is blow into the house by a fan, driven by photovoltaic panel. The sun shines on the special heating absorption board and the surrounding air absorbs heat. The fan makes air transport which results in a contribution to heat the building and thus a saving on heating bills. Regular ventilation without power consumption. Nakoair air heater starts and stops according to the intensity of sunlight, and run without any maintenance. Reducing the air volume can increase the air temperature into the room. Increasing the air volume can increase the heating efficiency, the overall heat of the room.	Applications Holiday Homes; Residential; Commercial Buildings; Cellar; Lofts; Garages; Workshop; Granges; Cabins; Summer Houses; Storage Rooms; Chalets; Sheds; Cottages; Caravans; Tents; Greenhouses; Drying Rooms; Gyms; Shops; Houses without electricity. Nakoair can be used to dry crops such as vegetables, fruits and grains. Note that by setting up two panels, e.g. one facing east-southeast and one south-southwest, you can take full advantage of the available sunshine throughout the day.	Parameter OS20/30 Just heating outdoor fresh air OS22/32/42 Heating outdoor fresh air; Heating indoor air internal circularly. Houses with little sunlight or poor insulation; rooms with frequent occupancy or high humidity require much larger models. For frequently occupied rooms, it is better to purchase OS22/32/42 with LCD thermostat and automatic vents.

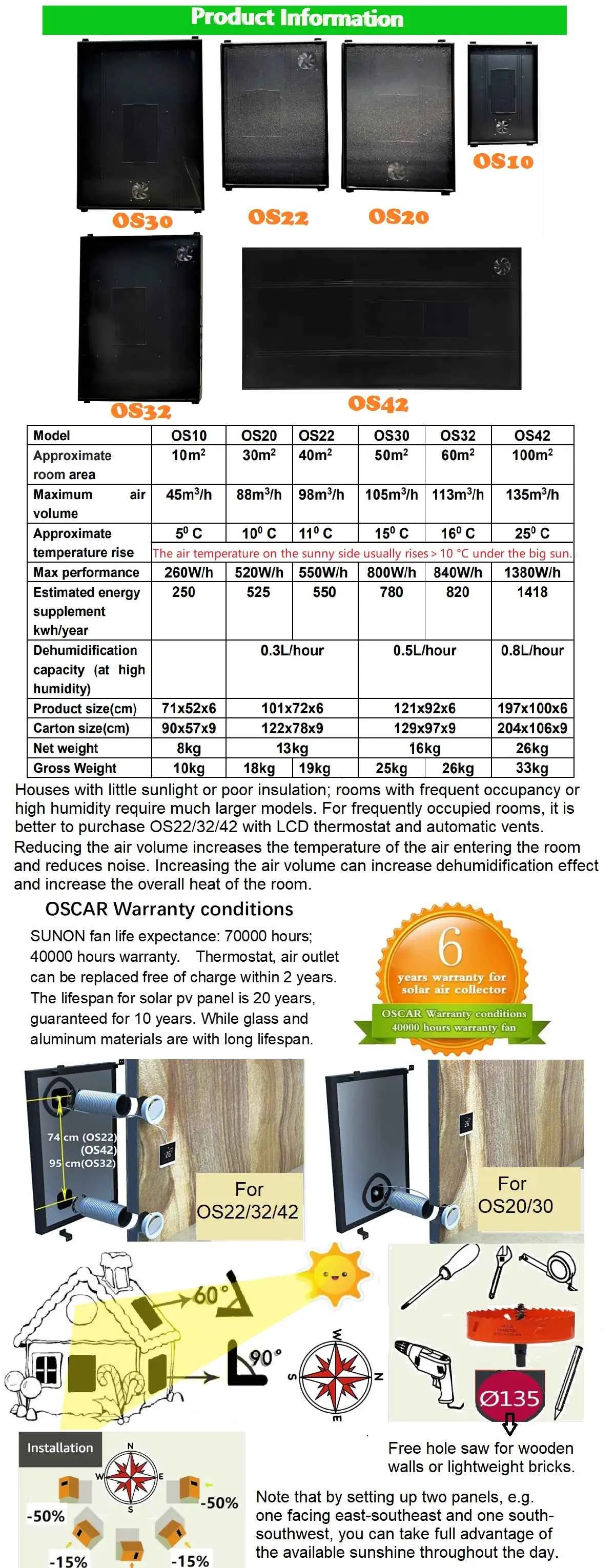

Product information

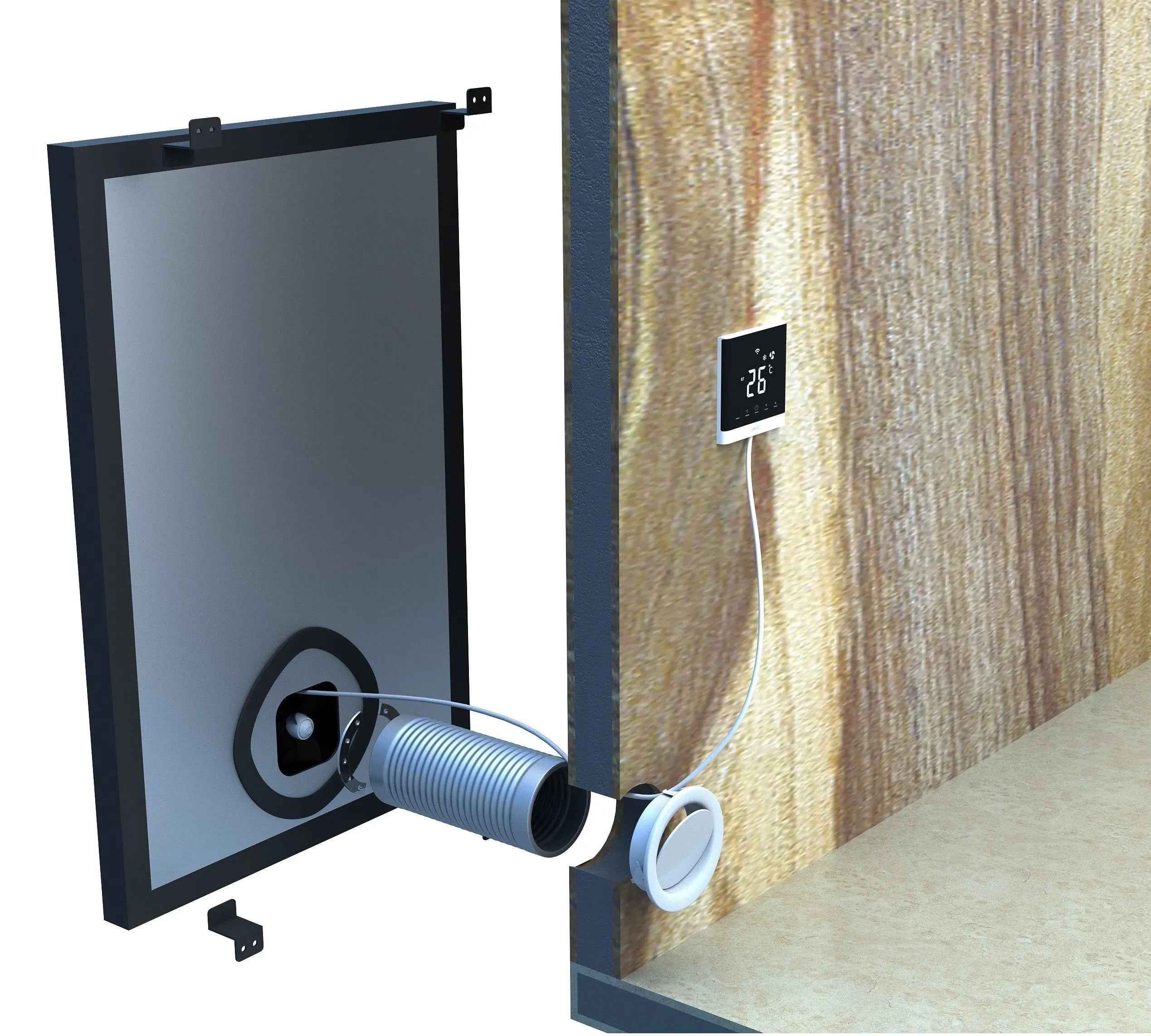

Mechanical thermostat Standard configuration：Ventilator will stop working when the heated temperature reaches the set value (eg. 25℃ ). Runs completely independent of the grid.	Fan brand: Sunon Instead of hydraulic fan, double ball fan is adopted, with longer lifespan ( 70000h ), low temperature resistant. The expected service life of photovoltaic panels is 15-20 years.	Easy installation & repair Installing your solar panel is so easy that you can do it yourself without the help of electrician, construction worker. Small area, light weight. Product includes thermostat and all the necessary accessories for installation, such as screws, fixing clips, air ducts, air outlets, manuals, etc. The 135mm hole saw for wooden walls or lightweight bricks already contains. You can substitute the spare parts except pv panels all by yourself within 30 minutes, with easy tools like scissors, tape, screwdriver.	Frame and Sealing strips The sealing strip is made of high-quality silicone rubber, which is sun-proof, weather-resistant and has a better appearance. Frame: for open air, sun-proof texture coating, sun-proof outdoor screws.

Advantage


Low iron solar tempered glass Low iron solar tempered glass is with big intensity, high elasticity, the transmission is excellent:up to 92%. Lower diffuse reflection can prevent heat loss.	Air vent New design: easy operation and installation. The air door can move 6mm in one circle, fast in and out. It is easy to open and close. Insert it first, then rotate, and it can be installed in 2 seconds. No need to tighten screws. The hose does not need to be fixed with a hoop. Activated carbon filter: filter dust, drive off odor, silencer, prevent flying insects.	PET film Fresh air inlet of solar air heater standard PET film: stops cold air, moisture, condensation of air humidity, and back draft( When the collector is not working).	Long life Glass is much longer than polycarbonate panels, which are only 10 years. and after sunlight irradiation, polycarbonate panel becomes yellow and solar transmittance goes lower.

Applications: Holiday Homes; Residential; Commercial Buildings; Cellar; Lofts; Garages; Workshop; Granges; Cabins; Summer Houses; Storage Rooms; Chalets; Sheds; Cottages; Caravans; Tents; Greenhouses; Drying Rooms; Gyms; Shops; Houses without electricity. Nakoair heater is started according to solar radiation.
Approximate room area for OS20: 30㎡; Maximum air flow: 88m³/h. Estimated energy supplement 525kwh/unit/year. Temperature rise: approx.10°C. Get your money back in 2-3 years. Mechanical thermostat: Ventilator will stop working when the heated temperature reaches the set value (eg. 25℃ ). The price already includes value-added tax (VAT) and customs duties. Free delivery to door.
On a sunny day, the temperature of the injected air is approximately 5-30ºC higher than the outdoor or indoor air inlet temperature. In addition, the air temperature on the sunny side usually rises more than 10 °C under the big sun.
In spring and autumn, the sun will be much better. The effect will be much better. In addition, the outdoor temperature at noon rose by several degrees Celsius. Solar products are environmentally friendly products, which are very useful for reducing greenhouse gas emissions. Reducing the air volume can increase the temperature, and increasing the air volume can increase the heating efficiency and dehumidification effect.
Through strict international certification, the products are trustworthy. The European Solar Keymark certification is the main quality label for solar thermal energy, demonstrating to end users that the product meets relevant European standards and meets other requirements. It is widely distributed in Europe and other regions.

Heating

Ventilation

Always supplying you a clean and healthy family

Dehumidification and Humidification: Optimum level (for comfort as well as building quality) is a relative humidity (RF) of 40-70%.

Reduce the amount of air pollution and greenhouse gases that result from the use of fossil fuels for heating.
Safety: low voltage, no fire, no household electricity, no smoke or dust.

Ventilation, heating, dehumidification or humidification, a healthy indoor climate!

Brand introduction: Nakoair solar collectors provide you with a healthy and warm home and automatically processes indoor air. Dedicated to sustainable development and innovations.

When it's a sunny day, OS20/30 will heat outdoor fresh air all the time. Total annual heating delivered (9 months) of OS20 is about 525 kwh; OS30 is about 780 kwh.
