Air collector OS30 Solar air heater, air ventilator with mechanical thermostat：Solar air Heater heating air Conditioner Conditioning Exhaust Fan Ventilator Thermal Panel Dehumidifier Heat Pump Ventilation Dehumidification water Attic roof vent gable

Air collector OS30 Solar air heater, air ventilator with mechanical thermostat：Solar air Heater heating air Conditioner Conditioning Exhaust Fan Ventilator Thermal Panel Dehumidifier Heat Pump Ventilation Dehumidification water Attic roof vent gable

Name: Air collector OS30 Solar air heater, air ventilator with mechanical thermostat：Solar air Heater heating air Conditioner Conditioning Exhaust Fan Ventilator Thermal Panel Dehumidifier Heat Pump Ventilation Dehumidification water Attic roof vent gable
Brand: Nakoair solar air heater
SKU: os30-solar-air-heater-air-ventilator-air-collector-with-mechanical-thermostat
Availability: InStock

Product details:

OS30 solar air heater

Standard Function:

Heating outdoor fresh air, applicable in Spring, Autumn and Winter

Model No.	OS30
Appro room area	50m²
Maximum air volume	105m3/ h
Time for air change	Approximate 2 hours
Heating efficiency	70%
Sun intensity performance(w/h/set )	800W
Total Annual Heating Delivered (9months)	700 kWh/m2
Estimated energy supplement	777kWh/unit/year
Temperature rise approx.	15°C
Noise Level	45db
Solar photovoltaic panel power	18watt
Fan	SUNON 12V, 3.4 watt
Special heating absorption board	Special anodic aluminum oxide, texture nano heat insulation coating, high absorption, low reflection.
Frame	Tailored for open air, anti-UV texture coating
Coating	Low iron patterned solar tempered glass, up to 92% transmittance
Product size	121x92x6cm
Carton size	129x98x9cm
Net weight	16kg
Gross Weight	20kg

Nakoair Solar air heater No cost for heating Ventilation Dehumidification Humidification Healthy indoor climate. Avoid moisture, mold, fungus, formaldehyde (HCHO), TVOC, benzene, ammonia, odor. Nakoair solar collectors provide you with a healthy and warm home and automatically processes indoor air. When it's a sunny day, OS20/30 will heat outdoor fresh air all the time. Runs completely independent of the grid.
Applications: Holiday Homes; Residential; Commercial Buildings; Cellar; Lofts; Garages; Workshop; Granges; Cabins; Summer Houses; Storage Rooms; Chalets; Sheds; Cottages; Caravans; Tents; Greenhouses; Drying Rooms; Gyms; Shops; Houses without electricity. Nakoair heater is started according to solar radiation.
Approximate room area for OS30: 50㎡; Maximum air flow: 105m³/h. Estimated energy supplement 780kwh/unit/year. Temperature rise: approx.15°C. Mechanical thermostat: Ventilator will stop working when the heated temperature reaches the set value (eg. 25℃ ).Get your money back in 2-3 years. The price already includes value-added tax (VAT) and customs duties. Free delivery to door.
On a sunny day, the temperature of the injected air is approximately 5-30ºC higher than the outdoor or indoor air inlet temperature. In addition, the air temperature on the sunny side usually rises more than 10 °C under the big sun.
In spring and autumn, the sun will be much better. The effect will be much better. In addition, the outdoor temperature at noon rose by several degrees Celsius. Solar products are environmentally friendly products, which are very useful for reducing greenhouse gas emissions. Reducing the air volume can increase the temperature, and increasing the air volume can increase the heating efficiency and dehumidification effect.

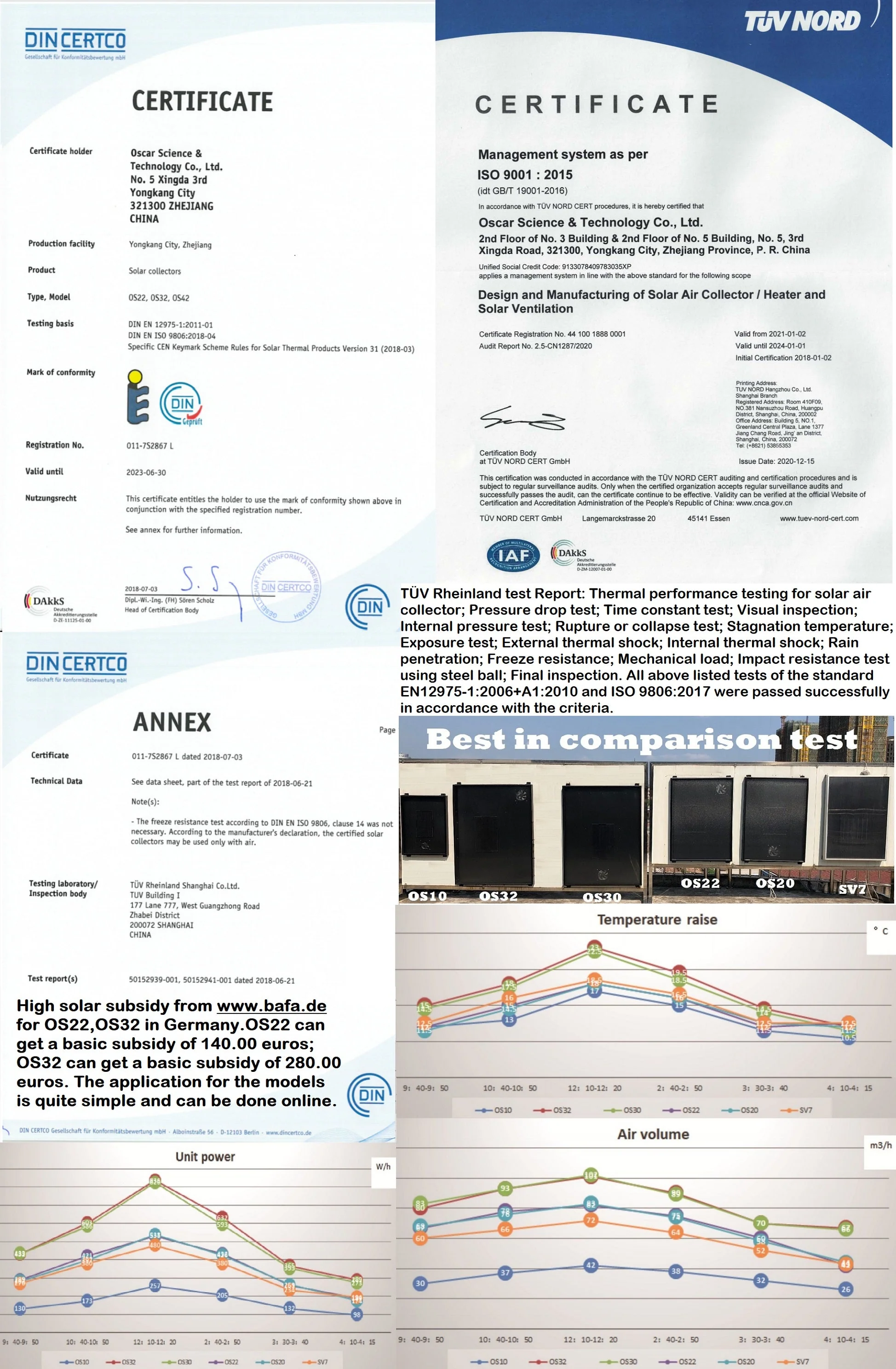

Through strict international certification, the products are trustworthy. The European Solar Keymark certification is the main quality label for solar thermal energy, demonstrating to end users that the product meets relevant European standards and meets other requirements. It is widely distributed in Europe and other regions.

Heating

On a sunny day, the temperature of the injected air is approximately 5-30ºC higher than the outdoor or indoor air inlet temperature. In addition, the air temperature on the sunny side usually rises more than 10 °C under the big sun.

Ventilation

Depending on the model, approx. 5 to 140 m³ dry, warm air is blown into the room per hour. The room can also be slightly ventilated on a cloudy day without sunlight. The fresh air of solar air heater squeezes the turbid air out of the room, keeping the air fresh and oxygen-rich. Avoid moisture, mold, fungus, formaldehyde (HCHO), TVOC, benzene and odor. The room air can be exchanged within 2 hours.

Always give you a clean and healthy home

Improve the indoor environment, reduce the irritation caused by allergy, especially for newborns. Improvement on the dwelling atmosphere---- bring in oxygen and reduce carbon dioxide; discharge unpleasant odors which might cause allergies and discomfort; control the temperature and moisture of the room, prevent the emergence and spread of bacteria. When dry and warm air keeps flowing in the room, the damp, rot or mold would be long-term reduced.

Dehumidification and Humidification: Optimum level (for comfort as well as building quality) is a relative humidity (RF) of 40-70%.

Absorb room moisture and drain out the room. Ventilation + Heating = Dehumidification. Make sure the value of your holiday home and wooden furniture. Especially suitable for wooden houses and basements. Nakoair solar air heater in basement, can sufficiently solve the moisture in basement, and prolong the life span of indoor structure and electrical appliance. The problem: Humid basements. One of the first signs of humidity in the basement is the stale smell. The humidity will soon destroy items stored in the basement, such as textiles, cardboard boxes or furniture. In addition, the lack of regular ventilation will result in mould and harmful fungus. To make the rooms fit for use again they have to be heated, mechanically dehumidified and vented on a regular basis. Below 15 ºC, electric dehumidifier will frost, and dehumidification effect will be much worse. Moreover, dehumidifier needs refrigeration and consumes a lot of electricity. This usually results in high operating costs.

The dry climate indoor can easily cause virus and bacteria to multiply and spread. In addition, the dry air takes away water from the body, making them feel dry, feverish, depressed, coughing, hoarse, and sore throat.

Reduce the amount of air pollution and greenhouse gases that result from the use of fossil fuels for heating.
Safety: low voltage, no fire, no household electricity, no smoke or dust.

Ventilation, heating, dehumidification or humidification, healthy indoor climate!

Brand introduction: Nakoair solar collectors provide you with a healthy and warm home and automatically processes indoor air. Dedicated to sustainable development and innovations.

When it's a sunny day, OS10/20/30 will heat outdoor fresh air all the time. Total annual heating delivered (9 months) of OS20 is about 525 kwh; OS30 is about 780 kwh.

Function Introduction

Operation principle for OS20/30

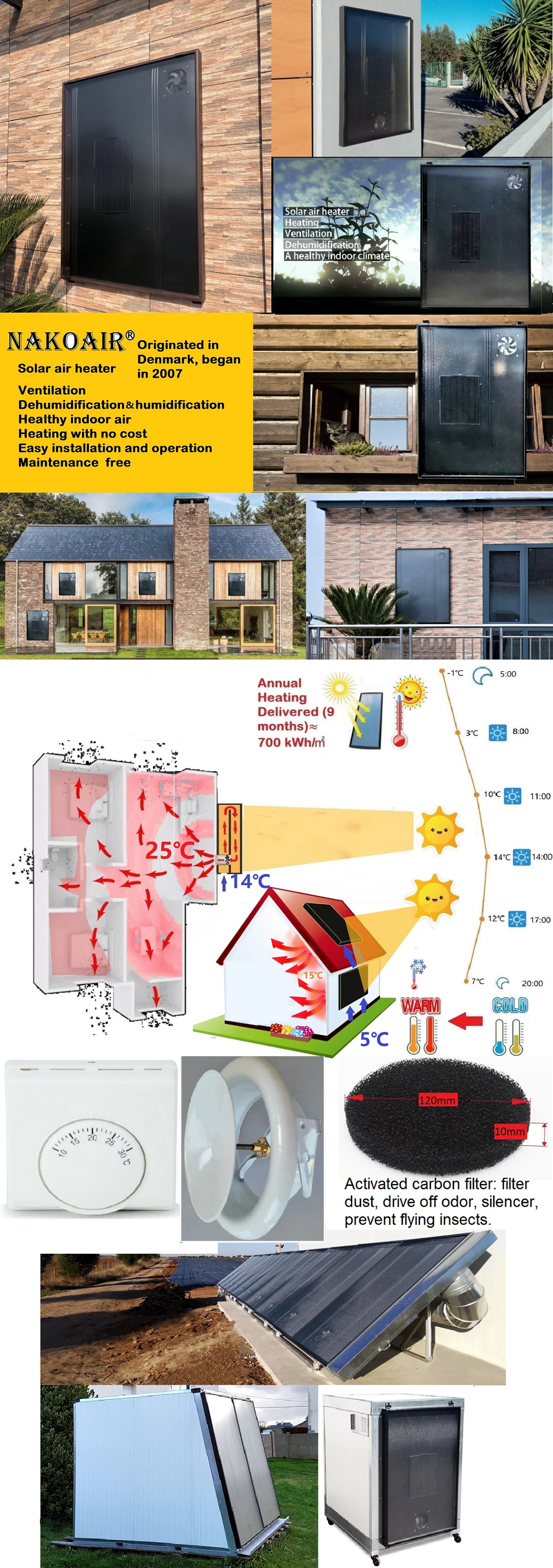

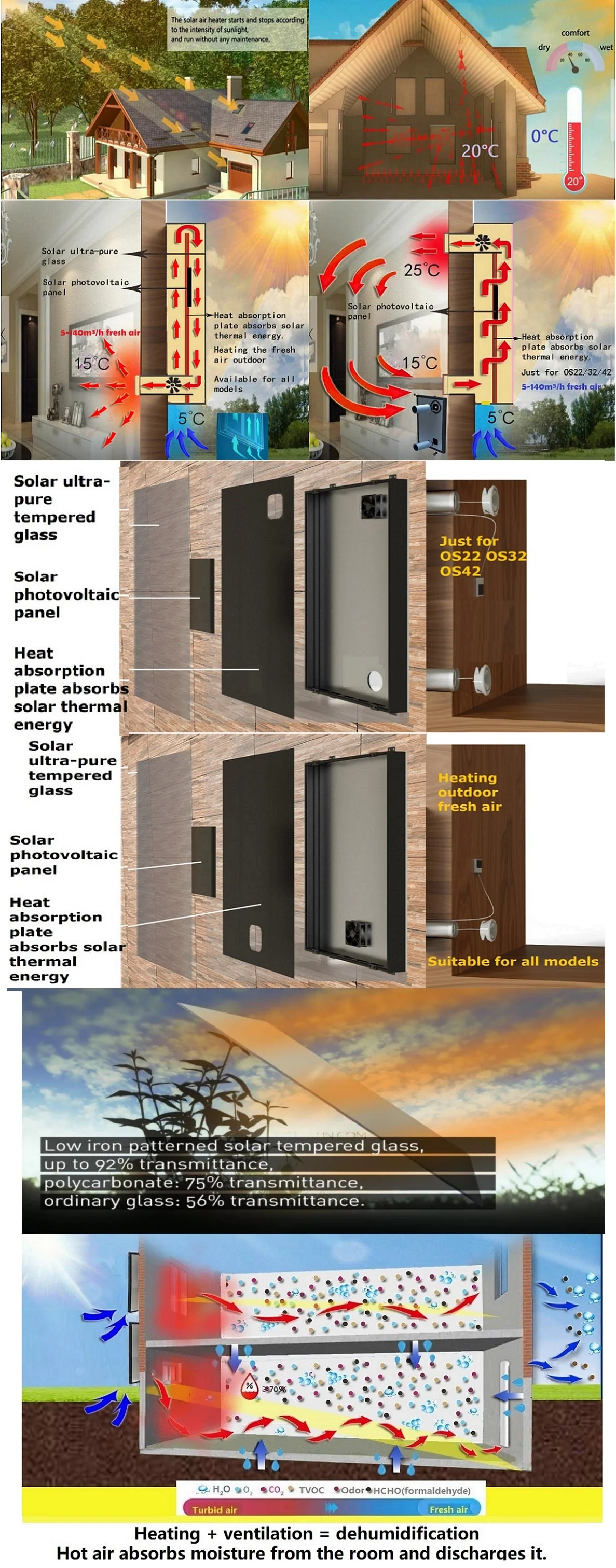

The heated fresh air is blow into the house by a fan, driven by photovoltaic panel. The sun shines on the special heating absorption board and the surrounding air absorbs heat. The fan makes air transport which results in a contribution to heat the building and thus a saving on heating bills. Regular ventilation without power consumption. Nakoair air heater starts and stops according to the intensity of sunlight, and run without any maintenance. Reducing the air volume can increase the air temperature into the room. Increasing the air volume can increase the heating efficiency, the overall heat of the room.

Applications

Holiday Homes; Residential; Commercial Buildings; Cellar; Lofts; Garages; Workshop; Granges; Cabins; Summer Houses; Storage Rooms; Chalets; Sheds; Cottages; Caravans; Tents; Greenhouses; Drying Rooms; Gyms; Shops; Houses without electricity. Nakoair can be used to dry crops such as vegetables, fruits and grains.

Note that by setting up two panels, e.g. one facing east-southeast and one south-southwest, you can take full advantage of the available sunshine throughout the day.

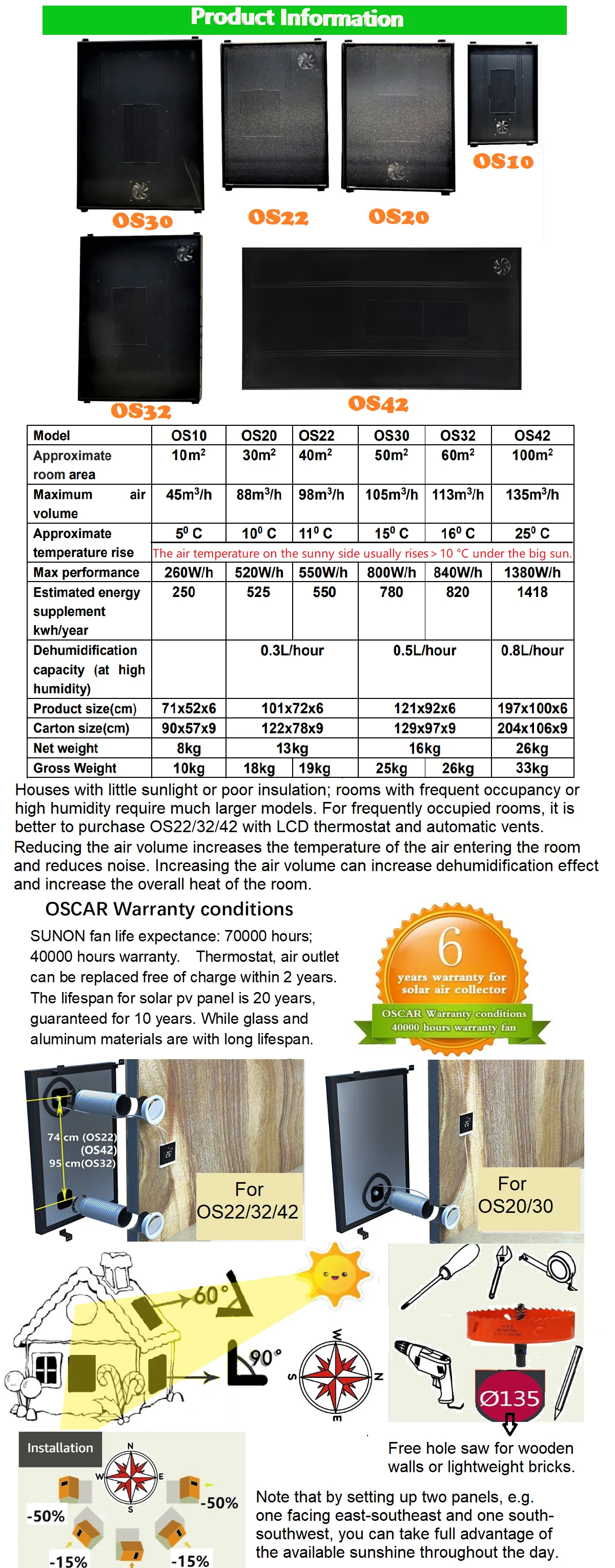

Parameter

OS20/30

Just heating outdoor fresh air

OS22/32/42

Heating outdoor fresh air;
Heating indoor air internal circularly.

Houses with little sunlight or poor insulation; rooms with frequent occupancy or high humidity require much larger models. For frequently occupied rooms, it is better to purchase OS22/32/42 with LCD thermostat and automatic vents.

Product information

Mechanical thermostat

Standard configuration：Ventilator will stop working when the heated temperature reaches the set value (eg. 25℃ ).

Runs completely independent of the grid.

Fan brand: Sunon

Instead of hydraulic fan, double ball fan is adopted, with longer lifespan ( 70000h ), low temperature resistant.

The expected service life of photovoltaic panels is 15-20 years.

Easy installation & repair

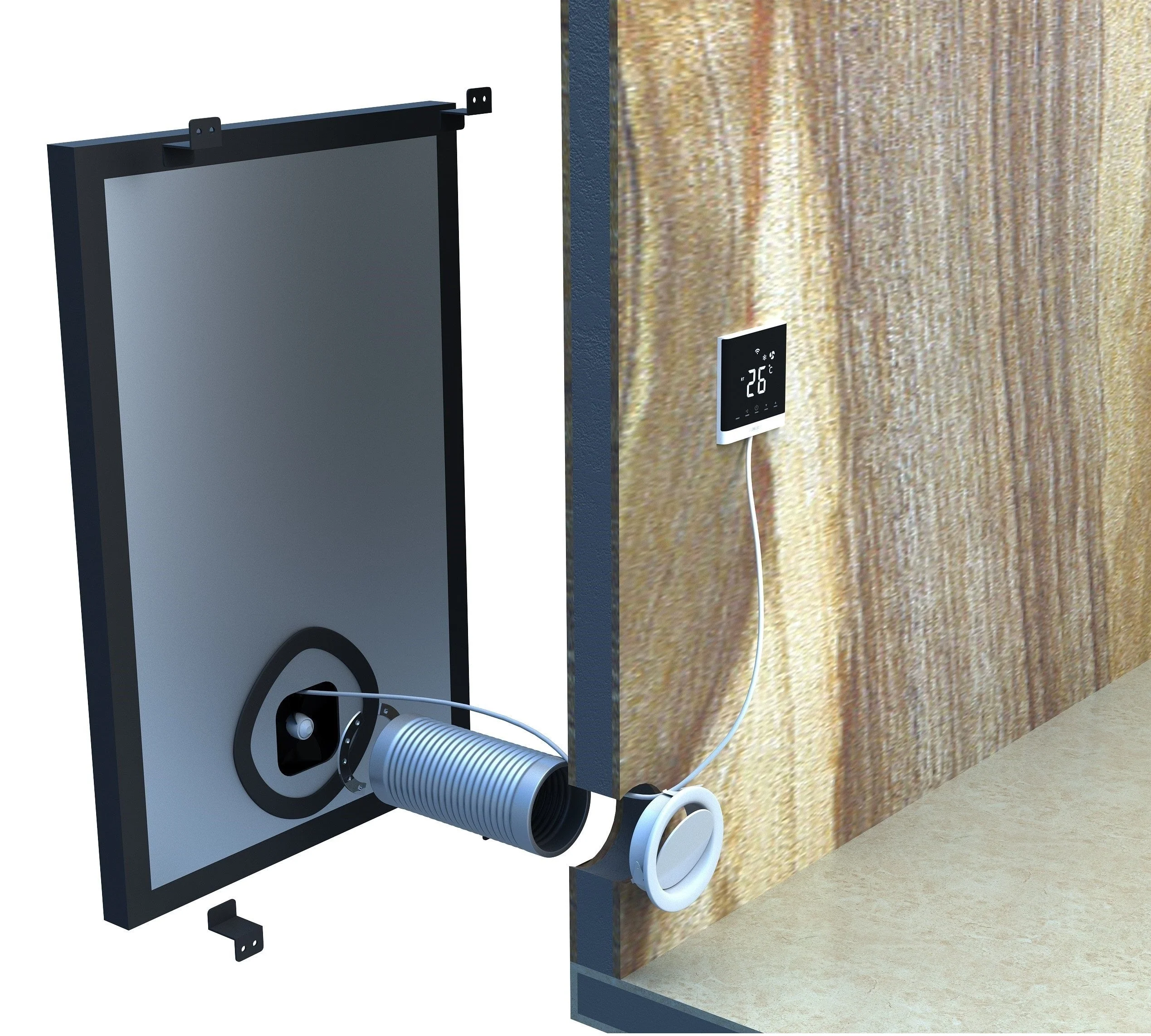

Installing your solar panel is so easy that you can do it yourself without the help of electrician, construction worker. Small area, light weight. Product includes thermostat and all the necessary accessories for installation, such as screws, fixing clips, air ducts, air outlets, manuals, etc.

The 135mm hole saw for wooden walls or lightweight bricks already contains.

You can substitute the spare parts except pv panels all by yourself within 30 minutes, with easy tools like scissors, tape, screwdriver.

Frame and Sealing strips

The sealing strip is made of high-quality silicone rubber, which is sun-proof, weather-resistant and has a better appearance.

Frame: for open air, sun-proof texture coating, sun-proof outdoor screws.

Low iron solar tempered glass

Low iron solar tempered glass is with big intensity, high elasticity, the transmission is excellent:up to 92%. Lower diffuse reflection can prevent heat loss.

Adjustable Air Vent

Galvanized steel sheet, high temperature baking varnish, made with ingenuity. Strong, durable, anti-corrosion, fire prevention, rust-proof and sun-proof and do not change color.

New design: easy operation and installation. The air door can move 6mm in one circle, fast in and out. It is easy to open and close. An ordinary screw can only move 1 mm after one turn. It takes a long time to open or close the air door. Easy to install: Insert it first, then rotate, and it can be installed in 2 seconds. No need to tighten screws. The hose does not need to be fixed with a hoop.

Activated carbon filter: filter dust, drive off odor, silencer, prevent flying insects. Plug it in the air intake duct to the fan. It needs to be removed and cleaned in time to avoid blocking the warm air. Otherwise please do not use.

PET film

Fresh air inlet of solar air heater standard PET film: stops cold air, moisture, condensation of air humidity, and back draft( When the collector is not working).

Long life

Glass is much longer than polycarbonate panels, which are only 10 years. and after sunlight irradiation, polycarbonate panel becomes yellow and solar transmittance goes lower.

Solar air Heater heating air Conditioner Conditioning Exhaust Fan Ventilator Thermal Panel Dehumidifier Heat Pump Ventilation Dehumidification water Attic roof vent gable Garage Cellar Basement Wooden Wood room Warehouse Lodge Shed Cage Cottage Tiny House Workshop summer holiday home garden Chalets Hut Hovel Villa Farm
